Shapash in Jupyter - GLM Regression Overview¶

This tutorial shows how to: - train a GLM regressor on House Prices data - evaluate predictions - use Shapash for global and local explainability - optionally launch the Shapash webapp

[ ]:

import numpy as np
import pandas as pd

from category_encoders import one_hot
from sklearn.linear_model import GammaRegressor
from sklearn.metrics import mean_absolute_error, root_mean_squared_error, r2_score
from sklearn.model_selection import train_test_split
from sklearn.pipeline import make_pipeline
from sklearn.preprocessing import StandardScaler

from shapash import SmartExplainer
from shapash.data.data_loader import data_loading

1. Build a GLM regressor¶

[2]:

house_df, house_dict = data_loading('house_prices')
house_df.head()

[2]:

	MSSubClass	MSZoning	LotArea	Street	LotShape	LandContour	Utilities	LotConfig	LandSlope	Neighborhood	...	EnclosedPorch	3SsnPorch	ScreenPorch	PoolArea	MiscVal	MoSold	YrSold	SaleType	SaleCondition	SalePrice
Id
1	2-Story 1946 & Newer	Residential Low Density	8450	Paved	Regular	Near Flat/Level	All public Utilities (E,G,W,& S)	Inside lot	Gentle slope	College Creek	...	0	0	0	0	0	2	2008	Warranty Deed - Conventional	Normal Sale	208500
2	1-Story 1946 & Newer All Styles	Residential Low Density	9600	Paved	Regular	Near Flat/Level	All public Utilities (E,G,W,& S)	Frontage on 2 sides of property	Gentle slope	Veenker	...	0	0	0	0	0	5	2007	Warranty Deed - Conventional	Normal Sale	181500
3	2-Story 1946 & Newer	Residential Low Density	11250	Paved	Slightly irregular	Near Flat/Level	All public Utilities (E,G,W,& S)	Inside lot	Gentle slope	College Creek	...	0	0	0	0	0	9	2008	Warranty Deed - Conventional	Normal Sale	223500
4	2-Story 1945 & Older	Residential Low Density	9550	Paved	Slightly irregular	Near Flat/Level	All public Utilities (E,G,W,& S)	Corner lot	Gentle slope	Crawford	...	272	0	0	0	0	2	2006	Warranty Deed - Conventional	Abnormal Sale	140000
5	2-Story 1946 & Newer	Residential Low Density	14260	Paved	Slightly irregular	Near Flat/Level	All public Utilities (E,G,W,& S)	Frontage on 2 sides of property	Gentle slope	Northridge	...	0	0	0	0	0	12	2008	Warranty Deed - Conventional	Normal Sale	250000

5 rows × 73 columns

[3]:

y = house_df['SalePrice']
X = house_df[house_df.columns.difference(['SalePrice'])].copy()

categorical_features = [col for col in X.columns if X[col].dtype == 'object']

# For GLM, one-hot encoding is safer for nominal categorical variables
encoder = one_hot.OneHotEncoder(
    cols=categorical_features,
    use_cat_names=True
).fit(X)

X = encoder.transform(X)

X_train, X_test, y_train, y_test = train_test_split(
    X, y,
    train_size=0.75,
    random_state=1
)

X_train.shape, X_test.shape

[3]:

((1095, 282), (365, 282))

[4]:

# Scale features before fitting GLM to improve optimizer convergence
glm_regressor = make_pipeline(
    StandardScaler(),
    GammaRegressor(alpha=0.01, max_iter=10000)
 )
glm_regressor.fit(X_train, y_train)

y_pred_values = glm_regressor.predict(X_test)

metrics = pd.Series(
    {
        'MAE': [mean_absolute_error(y_test, y_pred_values)],
        'RMSE': [root_mean_squared_error(y_test, y_pred_values)],
        'R2': [r2_score(y_test, y_pred_values)],
    }
)
metrics

[4]:

MAE     [14839.960193657058]
RMSE     [21797.67635499144]
R2      [0.9292235133732485]
dtype: object

2. Compile SmartExplainer¶

[5]:

y_pred = pd.DataFrame(y_pred_values, columns=['pred'], index=X_test.index)
y_target = y_test.to_frame(name='SalePrice')

xpl = SmartExplainer(
    model=glm_regressor,
    preprocessing=encoder,
    features_dict=house_dict,
    title_story='House Prices - GLM Regressor'
)

xpl.compile(
    x=X_test,
    y_pred=y_pred,
    y_target=y_target
)

INFO: Shap explainer type - shap.explainers.PermutationExplainer()

3. Explainability in notebook¶

[6]:

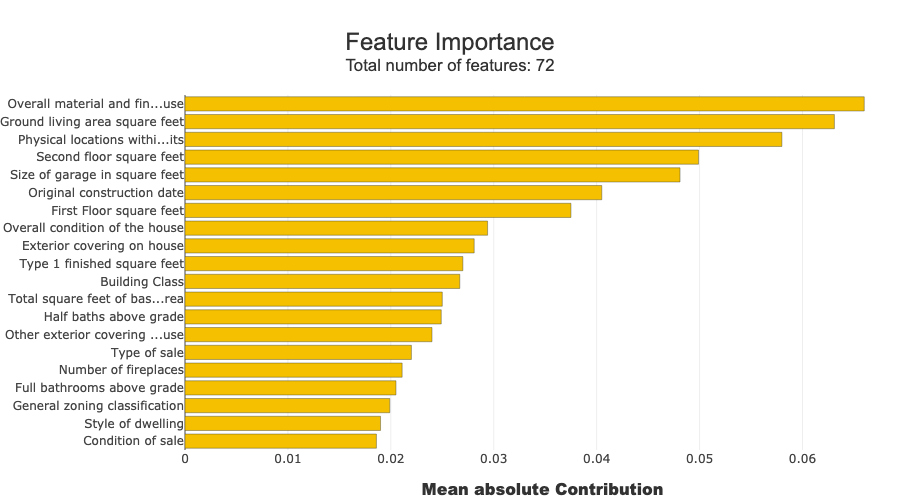

xpl.plot.features_importance()

../../_images/tutorials_domain_examples_tuto-domain02-glm-regression_9_0.png

[7]:

fig = xpl.plot.contribution_plot('OverallQual')

[8]:

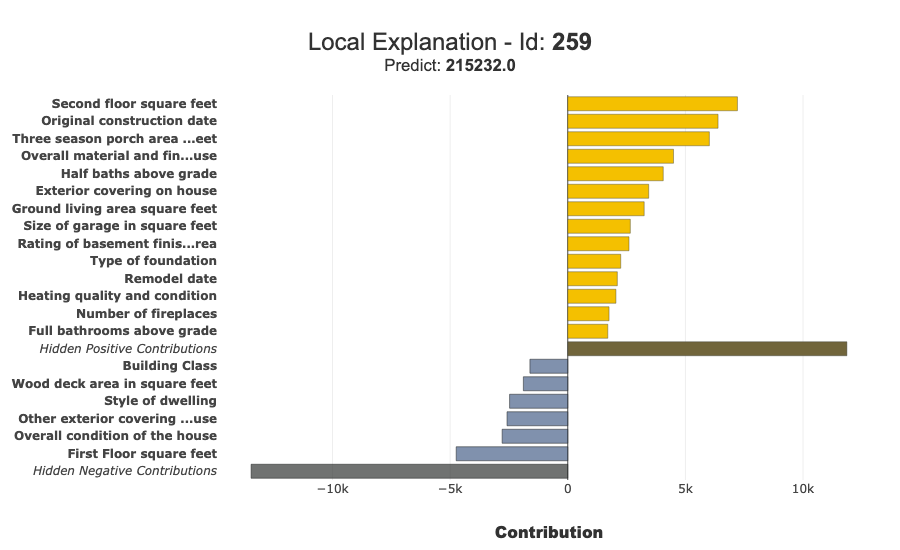

first_index = X_test.index[0]
xpl.plot.local_plot(index=first_index)

../../_images/tutorials_domain_examples_tuto-domain02-glm-regression_11_0.png

[9]:

xpl.to_pandas(max_contrib=8).head(10)

[9]:

	pred	feature_1	value_1	contribution_1	feature_2	value_2	contribution_2	feature_3	value_3	contribution_3	...	contribution_5	feature_6	value_6	contribution_6	feature_7	value_7	contribution_7	feature_8	value_8	contribution_8
259	215231.510661	Second floor square feet	829	7212.75529	Original construction date	2001	6387.987536	Three season porch area in square feet	245	6019.076585	...	4495.137907	Half baths above grade	1	4058.735982	Exterior covering on house	Vinyl Siding	3440.485441	Ground living area square feet	1792	3248.712227
268	160397.678094	Building Class	2-1/2 Story All Ages	-21612.884252	Overall condition of the house	8	12250.944277	Ground living area square feet	2192	10575.561484	...	-9545.699803	Low quality finished square feet	420	9028.738252	Original construction date	1939	-7836.722046	Rating of basement finished area	Low Quality	-5422.044481
289	115701.508983	Ground living area square feet	900	-12626.35656	Overall material and finish of the house	5	-8356.89129	Size of garage in square feet	280	-7095.89495	...	-4334.867376	Full bathrooms above grade	1	-3159.065666	Physical locations within Ames city limits	Sawyer	-3075.744804	Number of fireplaces	0	-3056.889288
650	80205.258207	Physical locations within Ames city limits	Meadow Village	-17473.852842	Ground living area square feet	630	-14787.896977	Size of garage in square feet	0	-14247.389586	...	-11790.654848	Exterior covering on house	Cement Board	-10484.672846	Style of dwelling	Split Foyer	-7235.055635	First Floor square feet	630	-6718.703928
1234	130344.536158	Condition of sale	Abnormal Sale	-9608.452839	Overall material and finish of the house	5	-8885.747137	Ground living area square feet	1188	-8100.302992	...	-5756.506194	Type 1 finished square feet	1000	4126.536304	Heating quality and condition	Fair	-4000.527692	Full bathrooms above grade	1	-3461.324322
168	352193.512148	Type of sale	Home just constructed and sold	27423.64341	Physical locations within Ames city limits	Northridge Heights	26264.829848	Overall material and finish of the house	8	15713.549155	...	15303.678926	Kitchen quality	Excellent	13895.520143	Condition of sale	Home wasn't completed	-13460.690594	Type 1 finished square feet	1288	10685.074459
927	295017.319098	Physical locations within Ames city limits	Northridge Heights	23176.411653	Ground living area square feet	2374	19431.401488	Second floor square feet	1140	15255.715262	...	12034.304356	Original construction date	2003	8068.794323	Size of garage in square feet	656	7847.434879	Type 1 finished square feet	0	-5794.106906
832	154075.134016	Building Class	2-Story PUD-1946 & Newer	-13398.22308	First Floor square feet	520	-11003.949501	Ground living area square feet	1200	-8430.064484	...	6333.763524	Total square feet of basement area	600	-4856.809903	General zoning classification	Floating Village Residential	4332.979451	Type 1 finished square feet	0	-4234.924633
1238	202185.042361	Second floor square feet	1101	11612.437376	Original construction date	2004	6908.342505	First Floor square feet	847	-6712.185727	...	-4905.248373	Overall material and finish of the house	7	4247.437853	Half baths above grade	1	3896.85019	Exterior covering on house	Vinyl Siding	3281.530173
427	245162.694436	Screen porch area in square feet	396	16317.597159	Type 1 finished square feet	1518	11626.876519	Refers to walkout or garden level walls	Good Exposure	10301.282465	...	-9292.625571	First Floor square feet	1644	8228.216186	Second floor square feet	0	-7922.166877	Building Class	Split or Multi-Level	-7435.296436

10 rows × 25 columns

4. Optional: launch webapp¶

Like in shapash/webapp/webapp_launch_DVF.py, you can launch the app from the compiled explainer.

[10]:

# xpl.init_app()
# app = xpl.smartapp.app
# app.run_server(debug=False, host='0.0.0.0', port=8080)
